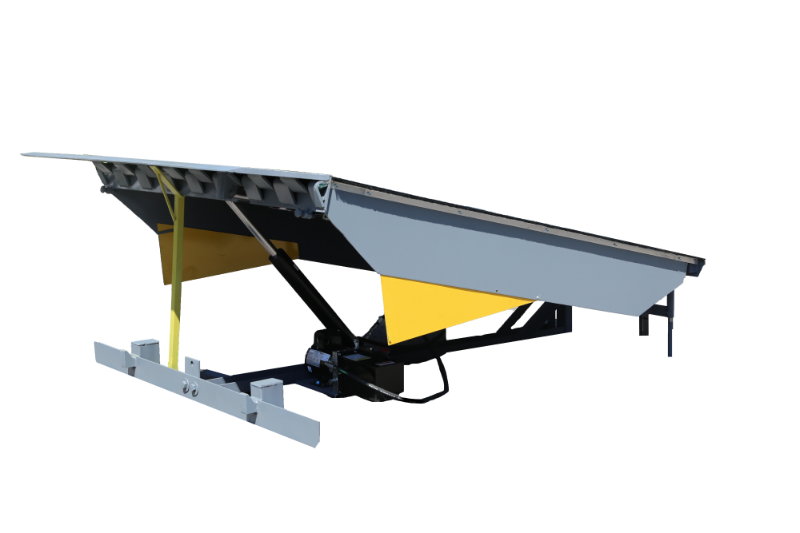

Titanium Series Hydraulic Dock Leveller
AVAILABLE IN CAPACITY RANGE 30K-100K
- Hydraulic velocity fuse, limits loaded ramps to freefall within 3” (76mm)
- Full range safety yellow telescopic toe guards meet the ANSI Z535.1 specification
- Permanently mounted reinforced safety yellow maintenance strut, supporting both deck and lip, makes routine maintenance easy and safe
BUILT TO LAST, BY PEOPLE FROM THE INDUSTRY, TITANIUM SERIES DOCK LEVELLERS
GUARANTEE TO PROVIDE YEARS OF TROUBLE-FREE TRAFFIC IN YOUR SHIPPING/RECEIVING
EASE THE OPERATION:
The Titanium series of dock levellers works simply by pushing a button on the control station.
A standard feature on stand-alone units.
Cycling times are under 60 seconds.
Proven hydraulic units (mounted to TENV motors) and cylinders are easily maintained and fully adjustable.
Working rages are between 12” (305mm) above and below dock grade.
No less than six heavy duty HSS thick walled support channels welded to a solid head plate and high tensile deck plate.
The unique gusseted anti-seize lip hinge design is guaranteed for life and greatly increases its structural integrity. A first in the industry. 4” (101 mm) rear deck tilt facilitates loading and unloading uneven trucks.
(This feature can also be eliminated to reduce tripping.
These features keep this dock from dishing of flexing.
**The looped style lip hinge is one of a kind to the industry. This unique design prevents the hinges from seizing due to environmental issues: such as snow and ice or from the lack of usage for prolonged periods of time. The hinge remains agile while maintaining rigidity. Weld patterns make this lip stronger than conventional dock lips, hence, the limited life time guarantee.
- Side (and rear) brush type weather seals 16” (3/4” thick) fully hydraulic lip
- Telescopic toe guards
- Adjustable lip keepers
- Maintenance stand
18” or 20” (3/4” thick) fully hydraulic lip
Four sided pans or preform pits for new construction
- Remote power units
- Dual action lip cylinders
- Insulated decks
- Manual or automatic traffic light packages
- Wheel chocks
- Vehicle restraint
CONTROL PANEL UPGRADES:
Fully programmable and customizable combination controls which include: emergency stop, independent lip control, door controls, light packages and many more.
These upgrades tie in all possible dock features in one single panel
A WELL-BUILT, LOW COST, LONG TERM INVESTMENT FOR THE THROW AWAY GENERATION.
THERE’S NO REASON YOU CAN’T HAVE IT ALL.
